PUNCH

PRICK PUNCH

PRICK PUNCH

The tip of the Prick punch is 40 degree.
A prick punch is similar to center punch is used for marking out.
Prick punch tip is sharped angled tip to produces a deeper indentation.
Prick punch is also known as a Dot punch.

CENTER PUNCH

CENTER PUNCH

Center punch is used to mark the center of a point.
It is used for mark the center of the hole when drilling holes.

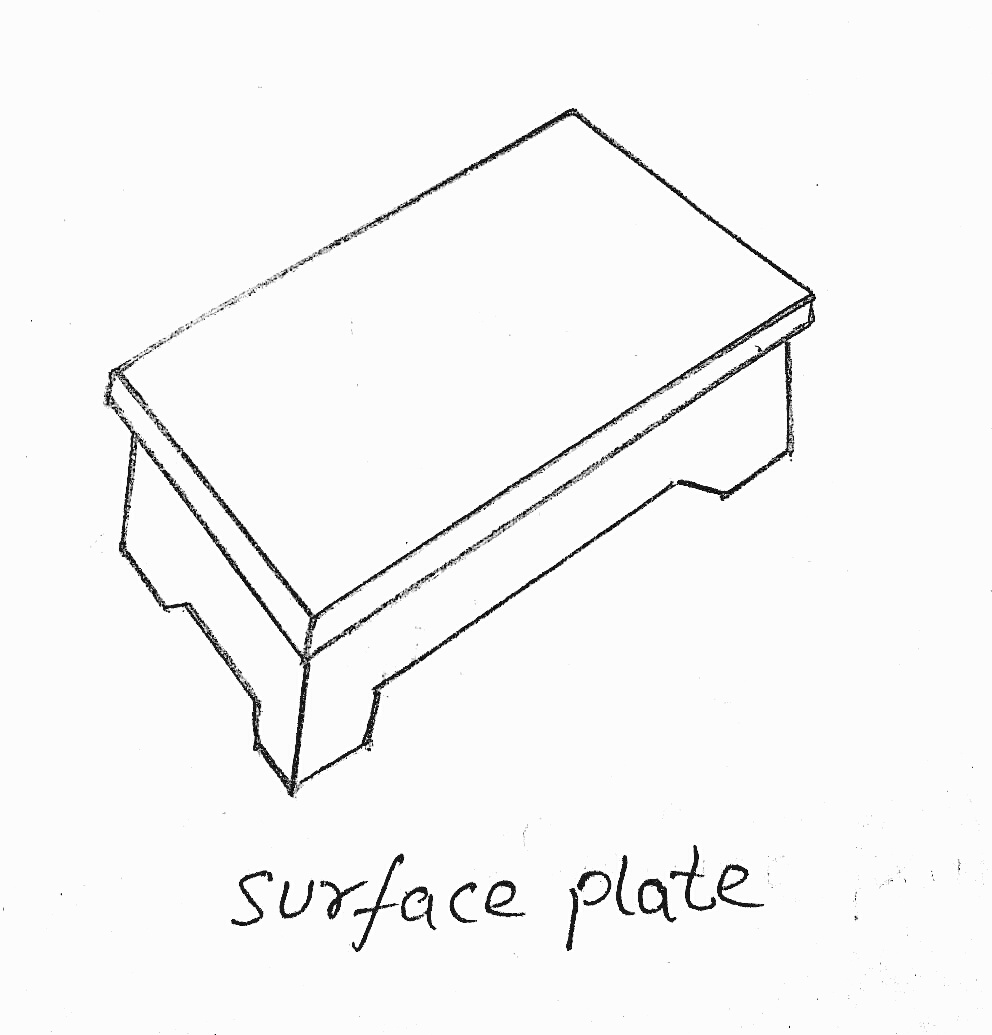

SURFACE PLATE

SURFACE PLATE

It is flat plate used as the horizontal reference plane for precision inspection.
